Drill Tubes Friction
PRODUCTS
Our friction welded drill pipes, are made of carbon steel and are the result of a continuous research for materials that better fit the required mechanical characteristics for torsional stress,
flexibility and compression.
We have ready in stock friction welded drill pipes with thickness of 6.3 mm (but also available on request with 4 mm or 8 mm) with diameter from 54mm to 220mm both for water well and for micropiles vertical, inclined or horizontal and directional drilling.

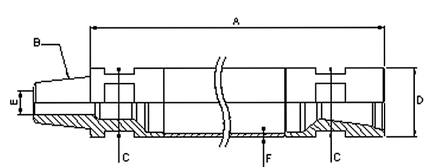

| Diameter and thread Pin x Box | Lenght (mm) | Thickness (mm) | Weight (Kg) | |
| 54 mm RD 40 BWJ | 500 | 6.3 | 4.5 | |
| 1000 | 6.3 | 9 | ||
| 1500 | 6.3 | 13 | ||
2000 | 6.3 | 17 | ||
| 3000 | 6.3 | 25 | ||
| 76 mm 2" 3/8 Api Regular | 500 | 6.3 | 7.5 | |
| 1000 | 6.3 | 15.1 | ||
| 1500 | 6.3 | 20.5 | ||
| 2000 | 6.3 | 26 | ||
| 3000 | 6.3 | 36.8 | ||
| 88,90 mm 2" 3/8 Api Regular | 500 | 6.3 | 9 | |
| 1000 | 6.3 | 18.7 | ||
| 1500 | 6.3 | 25.2 | ||
| 2000 | 6.3 | 32 | ||
3000 | 6.3 | 44.5 | ||
88,90mm 2" 3/8 IF | 500 | 6.3 | 9 | |
| 1000 | 6.3 | 25 | ||
| 1500 | 6.3 | 25.2 | ||
| 2000 | 6.3 | 32 | ||
| 3000 | 6.3 | 44.5 | ||
| 114 mm 3" 1/2 Api Regular | 500 | 6.3 | 15 | |
| 1000 | 6.3 | 28.6 | ||
| 1500 | 6.3 | 37 | ||
| 2000 | 6.3 | 46 | ||
| 3000 | 6.3 | 62.2 | ||
| 127 mm 3" 1/2 Api Regular | 1000 | 6.3 | 32.3 | |
| 1500 | 6.3 | 41.6 | ||
| 2000 | 6.3 | 51 | ||
| 3000 | 6.3 | 69.7 | ||
140 mm 4" 1/2 Api Regular | 500 | 6.3 | 28 | |
1000 | 6.3 | 39 | ||
1500 | 6.3 | 49 | ||
2000 | 6.3 | 60 | ||
3000 | 6.3 | 80.1 | ||
| 152,4 mm 4” 1/2 Api Regular | 1500 | 8.8 | 69.28 | |
| 2000 | 8.8 | 84.86 | ||
| 3000 | 8.8 | 116.03 | ||
| 168 mm 4” 1/2 IF | 1500 | 8.8 | 83 | |
| 2000 | 8.8 | 100.28 | ||
| 3000 | 8.8 | 134.83 | ||
| 180 mm 6” 5/8 Api Regular | 1500 | 8.8 | 95.87 | |
| 2000 | 8.8 | 114.45 | ||
| 3000 | 8.8 | 151.60 | ||
| 194 mm 6” 5/8 Api Regular | 1500 | 8.8 | 114.21 | |
| 2000 | 8.8 | 134.31 | ||
| 3000 | 8.8 | 174.50 | ||
* any length available on specific request | ||||
